FSW vs Brazing vs Welding for Liquid Cold Plates (How to Choose)
Joining is the reliability gate for most liquid cold plates. The same channel design can behave very differently depending on whether you use
FSW, brazing, or fusion welding. Select based on CTQs (leak + flatness), material, plate size, and target volume.

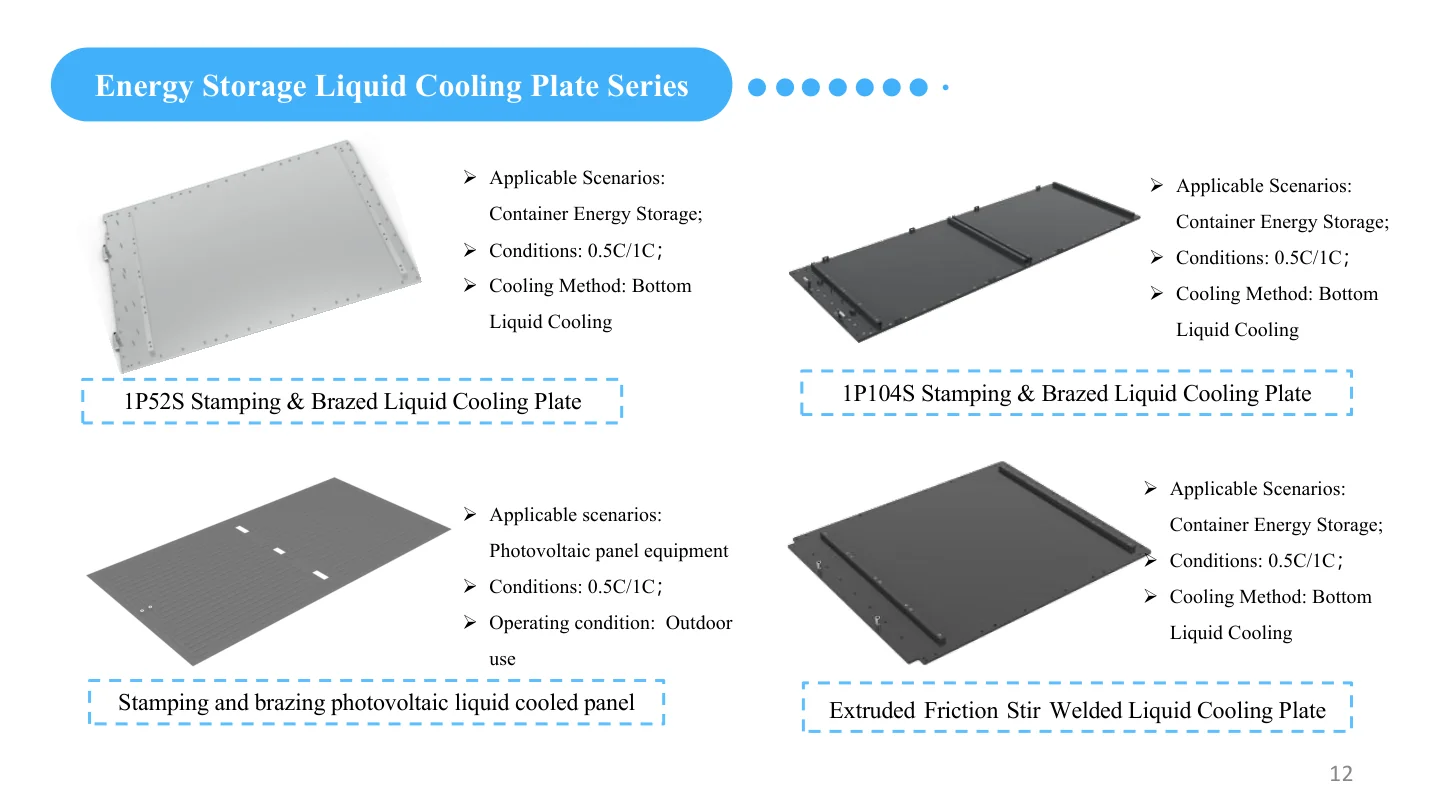

Process comparison matrix

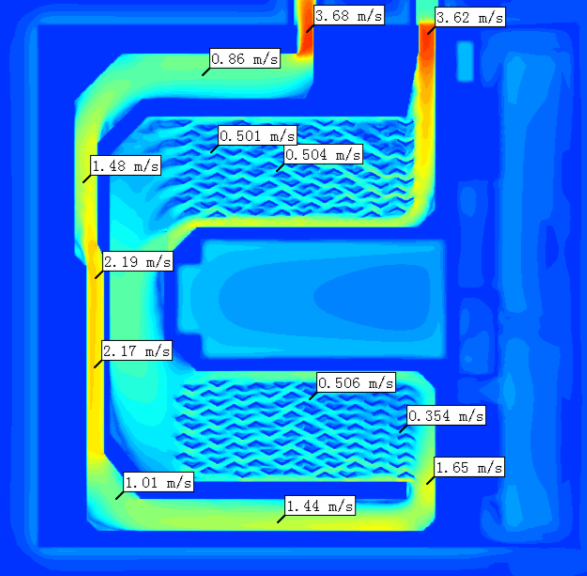

| Process | Best-fit | Leak risk drivers | Warpage risk | Notes |
|---|---|---|---|---|
| FSW | Large aluminum plates | Tool path, start/stop, root defects | Low–Medium | Strong repeatability with proper fixtures |
| Brazing | Complex internals | Cleanliness, filler flow, voids | Medium–High | Thermal cycle can warp; plan post machining |
| Fusion welding | Robust structures | Porosity, cracking, HAZ effects | Medium | Sequence/fixtures determine flatness |
CTQs to define regardless of process
- Leak CTQ: method, pressure, duration, acceptance, traceability.
- Flatness CTQ: post-join flatness target and measurement method.
- Sealing CTQ: groove geometry + sealing-zone Ra.
- Cleanliness: deburr/flush/dry requirements and verification.
Distortion control checklist
- Define fixturing/constraint method during joining.
- Define joining sequence to reduce residual stress.
- Plan post-process machining if flatness is CTQ.
- Verify CTQs in FAI (flatness, groove, ports, datums).
- Leak test to defined window and record results.
Related internal links
External references (outbound links)
- TWI — Friction Stir Welding (FSW) overview
- ISO 25239-2 — FSW joint design requirements
- ISO 25239-1 — FSW vocabulary
FAQ
Which process gives the best leak reliability?
No universal best—choose the route that holds leak + flatness CTQs stably at your target volume.
Does brazing always warp the plate?
Not always, but thermal cycles can introduce warpage; plan fixtures and post machining if needed.
Is FSW only for aluminum?
Most common for aluminum; feasibility depends on material and geometry.
What is the hidden risk in welding?
Porosity and distortion; sequence and fixtures determine flatness stability.
Should leak test happen before final machining?
If machining corrects warpage, leak test after that step to validate final condition.
How do we specify a retest policy?
Define whether retest is allowed, how many times, and under what conditions.
What should be verified in FAI?
Leak record, flatness, sealing groove geometry/Ra, ports/threads, datum/hole CTQs.
How do we reduce process selection risk?
Validate prototypes using the same process route intended for production.
