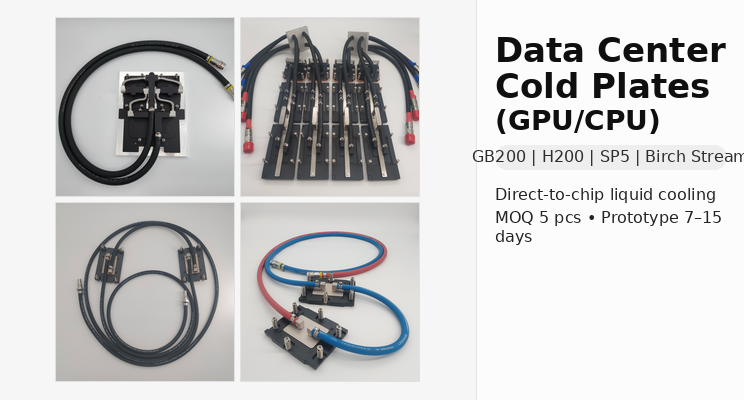

Coolant Compatibility for Data Center Cold Plates

Coolant compatibility is one of the fastest ways to prevent corrosion, leaks, and unstable thermal performance in direct-to-chip GPU/CPU liquid cooling. Before you finalize a cold plate design, define your coolant type, concentration, temperature window, cleanliness limits, and material constraints—then we can engineer the channel design, plating, seals, and process controls around your real operating conditions.

Need a fast review? Send your interface drawing + boundary conditions to Cold Plate RFQ. An engineer reviews every RFQ and replies by email with a manufacturable proposal and next steps.

Why coolant compatibility matters (procurement + engineering)

• Reliability: corrosion products and galvanic couples can clog micro-channels, raise ΔP, and create hot spots.
• Manufacturability: plating choice, cleaning, brazing/welding residue control, and leak testing must match your coolant chemistry.
• OPEX risk: wrong inhibitor package or poor filtration can shorten service intervals and increase downtime.

Common coolants used in GPU/CPU loops

Most data center direct-to-chip systems use water-based coolants. The exact coolant compatibility targets depend on your facility and maintenance model, but these are the typical families we see:

• DI water: strong heat transfer, but requires tight corrosion control and material pairing.
• EGW (ethylene glycol + water): improves freeze protection; viscosity increases with concentration and temperature drop.
• PGW (propylene glycol + water): common when toxicity concerns matter; similar trade-offs on viscosity and heat transfer.

Coolant compatibility checklist (7 specs to define)

If you want a predictable quote and fewer engineering loops, define these coolant compatibility inputs up front:

1. Coolant type & concentration: DI / EGW / PGW, and % glycol by volume.
2. Operating temperature window: inlet temperature and allowable outlet/plate surface limits.
3. Material constraints: copper, aluminum, nickel plating requirements, stainless, and any “no-go” materials.
4. Corrosion strategy: inhibitor package requirements, passivation expectations, and acceptable metals pairing.
5. Water quality limits: pH window, conductivity targets, and chloride/sulfate limits (share your internal spec).
6. Cleanliness & filtration: particle size limit, filter micron rating, and whether you require inline strainers.
7. Seal & hose constraints: O-ring elastomer preference (EPDM/FKM/NBR) and hose material compatibility.

Materials & galvanic considerations

For water-based coolants, coolant compatibility is largely a materials problem. Mixed-metal systems can create galvanic corrosion if the chemistry and inhibitors aren’t aligned.

• Copper cold plates: excellent thermal performance; define whether bare copper is acceptable or if nickel plating is required.
• Aluminum components: needs careful pairing (and inhibitor control) when combined with copper in the same loop.
• Plating & coatings: if you require nickel plating, specify thickness range and any porosity/leak acceptance criteria.
• Fittings/QDCs/manifolds: confirm wetted materials (brass/stainless/etc.) to avoid “hidden” galvanic couples.

Practical guidance for DI water vs glycol mixes

• DI water: best heat transfer, but sensitive to contamination and corrosion control. Define cleanliness and maintenance expectations early.
• EGW/PGW: adds freeze protection, but raises viscosity and can increase ΔP. Share your ΔP budget so we can tune channels and porting.
• Inhibitors matter: do not assume “any glycol” is fine—specify inhibitor package requirements or provide the exact fluid product name.

What we recommend you send with an RFQ

To evaluate coolant compatibility and quote a manufacturable cold plate, send:

• Interface drawing (STEP + PDF) and stack-up constraints
• TDP/heat map and allowable temperature targets
• Coolant type (DI/EGW/PGW) + concentration + inlet temperature
• Flow rate target and ΔP limit across the cold plate
• Any corrosion/material restrictions (plating, mixed-metal constraints, pH/conductivity limits)

Contact (fastest): WhatsApp: +61 449 963 668  |  Email: info@tonecooling.com

FAQ

Q1: What’s the minimum information needed to start?
A: Interface drawing (STEP/PDF) + TDP/heat map + coolant & inlet temp + flow + ΔP limit.

Q2: Do you support DI water, EGW, and PGW?
A: Yes. We design around your coolant family, chemistry limits, and materials constraints to ensure coolant compatibility.

Q3: Can you design to a strict ΔP budget?
A: Yes. ΔP is treated as a primary design constraint; channels and porting are tuned to balance thermal performance and hydraulic limits.
