EV Charging & Power Electronics Liquid Cold Plates
ToneCooling manufactures custom liquid cold plates and cooling units for EV charging stations, battery packs and power conversion — from stamped-brazed battery plates to 3–30 kW integrated liquid-cooling units (R134a / R744), IP54/IP67 rated. Each model below ships with a downloadable engineering datasheet.
EV Charging & Power Liquid Cold Plate Models — Download Datasheets (18)
1P104S
Photovoltaic Cold Plate
Harmonica-Tube EV Cold Plate

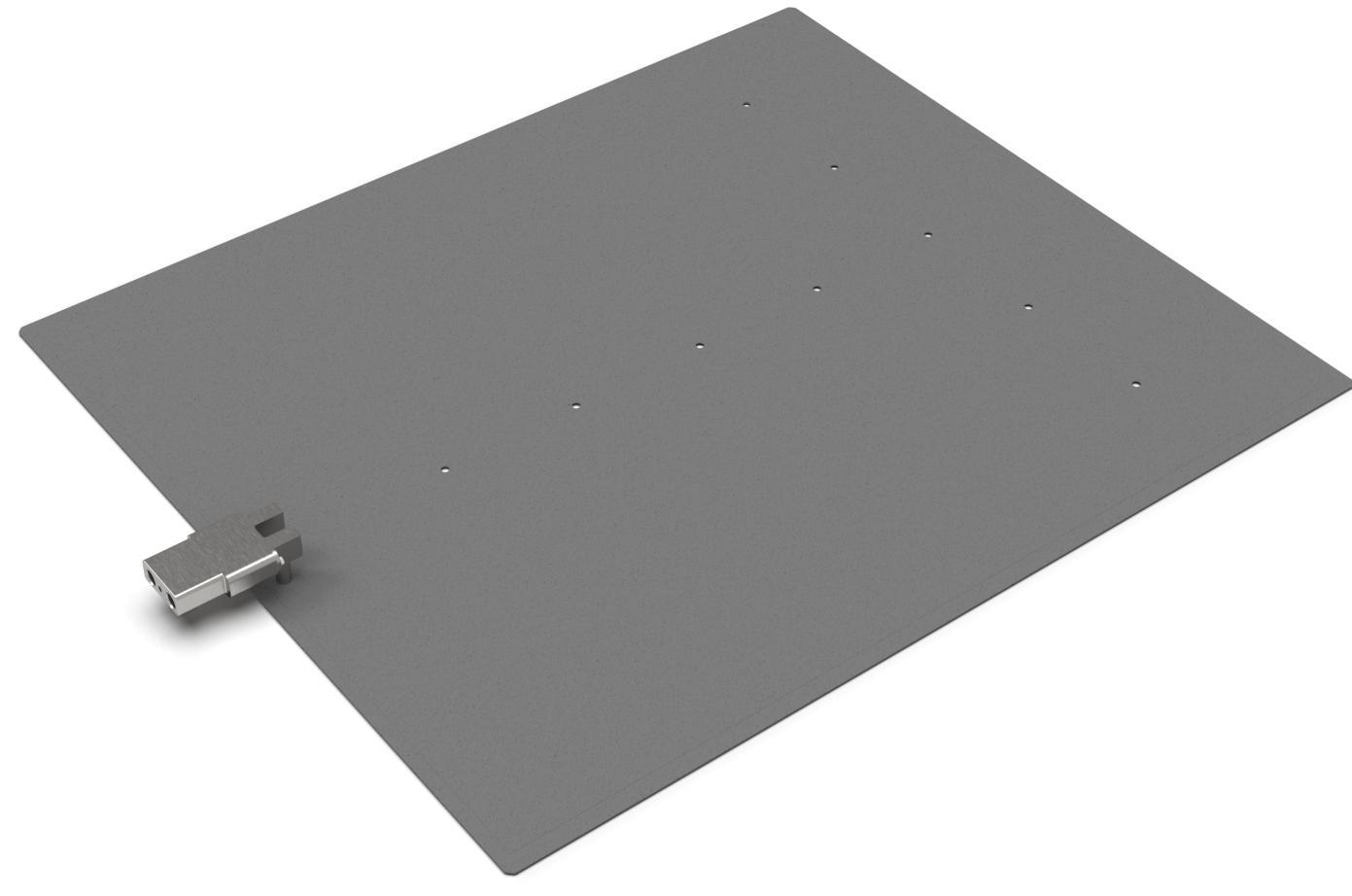

EV Battery Direct-Cooling Plate
Direct-Cool + Heating Film (2-in-1)
Frequently Asked Questions
What EV charging power levels do you cool?

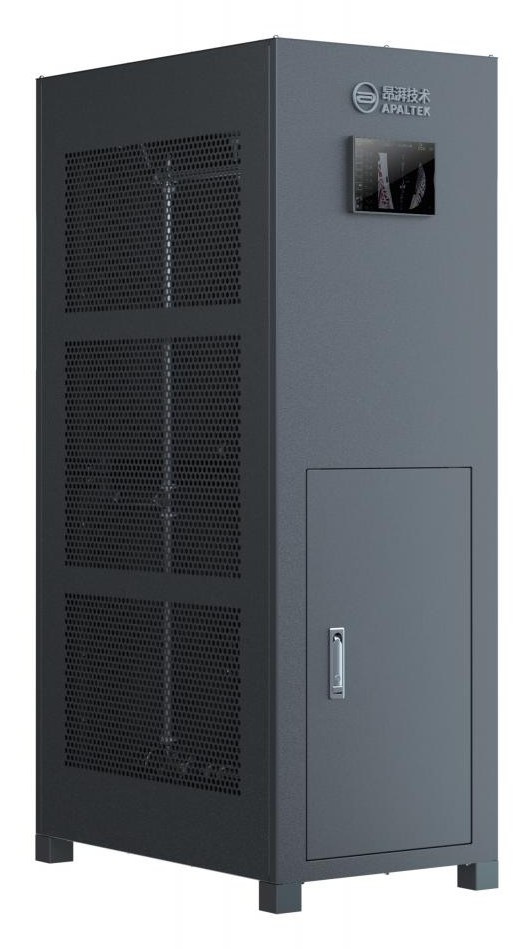

Integrated liquid-cooling units from ≈3 kW to 30 kW+ for fast/ultra-fast DC chargers, plus cold plates for charging modules and cables.
Do you cover EV battery and power-converter cooling?
Yes — stamped-brazed and harmonica-tube battery cold plates, plus plates for inverters, OBC and DC-DC converters.
What coolants and ratings are supported?
50/50 EGW, R134a and R744 (CO2) systems; enclosures rated to IP54/IP67 for outdoor charging.
What is the MOQ and lead time?
Prototype MOQ is 5 pieces, 7–15 working days; production 4–6 weeks depending on volume.
Do you provide a datasheet for each model?
Yes — a downloadable single-page datasheet (PDF) for every model below.
Need a custom EV charging / power cold plate?
Send your power level, coolant, ingress rating and envelope — we review manufacturability before quoting.
