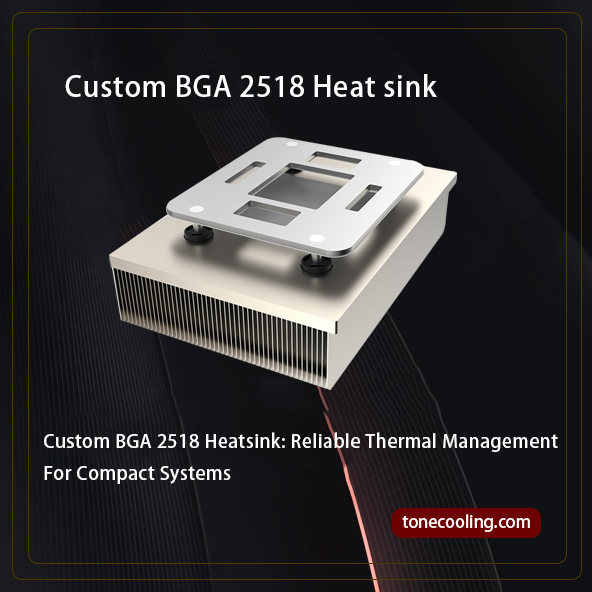

The BGA 2518 is a type of CPU socket used for Intel Xeon D processors. These processors are often found in embedded systems and other applications where space is at a premium. Effective cooling is essential to maintain the performance and reliability of BGA 2518 CPUs, especially in demanding environments. This article discusses a custom heatsink solution designed specifically for BGA 2518 processors
BGA 2518 Socket and Compatible CPUs The BGA 2518 socket is used by Intel Xeon D processors. These processors are designed for embedded applications, offering a balance of performance and power efficiency. Examples of processors that use the BGA 2518 socket include the Intel Xeon D-2191 (18-core, 86W) and the Intel Xeon D-2177NT (14-core, 105W).Heatsink Design and Materials Given the 120W power consumption, a robust cooling solution is required to prevent overheating and ensure stable operation. The heatsink features an aluminum base and aluminum fins, combined with three heat pipes. Aluminum is a lightweight and cost-effective material with good thermal conductivity. The aluminum base makes direct contact with the CPU, drawing heat away from the processor.
