What Is a Vapor Chamber?

A vapor chamber is a sealed metal device that spreads heat through phase-change cooling. It has a working fluid inside, along with a capillary wick that moves the fluid back to the heat source after evaporation. It supports fast and even heat distribution across a surface. It has a flat geometry, so it fits compact assemblies where heat pipes cannot.

A vapor chamber works as a two-phase heat spreader. Its core advantage is the ability to maintain uniform temperature across large areas. This allows stable thermal performance in high-power components with small footprints.

How a Vapor Chamber Works

Phase-Change Heat Transfer

Inside the vapor chamber, the cycle begins when heat enters the evaporator zone. The working fluid absorbs energy and changes from liquid to vapor. The vapor moves to cooler regions. It releases heat and changes back to liquid. The wick structure returns the liquid to the heat source. This flow continues without pumps or external energy.

Heat Spreading Behavior

The vapor chamber spreads heat in two ways. The first involves phase-change and vapor movement. The second involves conductive spreading within the plate’s solid metal body. The combination results in fast heat equalization. Engineers often choose this method when they need stable surface temperatures across uneven loads.

Why It Outperforms Heat Pipes

Heat pipes move heat along a line. A vapor chamber spreads heat across a plane. This difference matters when the heat source is wide or has multiple hotspots. The vapor chamber handles these patterns better because it forms a unified thermal zone. It avoids the point-to-point restriction that limits heat pipe efficiency.

Internal Structure of a Vapor Chamber

Outer Shell

The chamber usually uses copper due to its strong thermal conductivity and easy forming behavior. Some systems use stainless steel if corrosion resistance is required. Copper remains the preferred choice for most electronics.

Wick Layer

The wick holds the working fluid. It also regulates the returning flow. It may use sintered copper powder, copper mesh, or a composite design. Sintered powder offers high capillary pressure and consistent performance. Mesh supports lower manufacturing cost.

Working Fluid

The working fluid must match the operating temperature. Water serves most electronics because it performs well in the 30°C to 120°C range. Low-temperature fluids support cold environments. Some systems use specialized fluids for aerospace.

Internal Supports

Stamped or machined supports prevent deformation when the internal pressure changes. These supports also maintain flatness. Flatness matters for contact quality between the vapor chamber and the device being cooled.

Manufacturing Process of  Vapor Chambers

1. Shell Forming

Manufacturers form the copper sheets through stamping, machining, or hydroforming. The shape depends on thickness needs and required mounting features.

2. Wick Placement

The wick bonds to the inside surface. This step sets the capillary behavior. Sintered wicks go through a furnace process. Mesh wicks get fixed through welding or diffusion bonding.

3. Working Fluid Injection

The shell is sealed except for one fill port. The manufacturer injects a precise amount of fluid under vacuum. The vacuum removes non-condensable gases that would degrade performance.

4. Final Sealing

After filling, the port undergoes welding. The weld must be leak-free and stable under pressure cycles.

5. Testing and Verification

Each vapor chamber goes through leak tests, thermal cycling tests, and performance tests. Consistent performance depends on internal cleanliness and stable wick behavior.

Advantages of Using Vapor Chambers

High Heat Spreading Efficiency

The vapor chamber can move heat with extremely low thermal resistance. This offers uniform temperature distribution across large contact areas.

Compact Structure

It has a flat geometry that fits thin designs. This suits laptops, compact servers, and industrial control units.

No Moving Parts

It operates silently with no pump. This improves reliability and reduces maintenance.

Stable Under Thermal Cycles

Its internal design handles repeated heating and cooling. This supports long life in harsh industrial settings.

Supports High Power Density

Modern components push high power into small areas. The vapor chamber handles these loads better than passive metal plates.

Disadvantages of Vapor Chambers

Higher Cost Than Heat Pipes

The vapor chamber requires more precise manufacturing. It also uses more material. This increases cost compared to heat pipes.

Design Complexity

Engineers must consider wick type, pressure, fluid volume, and thickness. These details need careful calculation for each application case.

Deformation Risk Under High Force

If the design lacks adequate internal supports, the chamber can deform under mounting pressure. This leads to reduced performance or contact failures.

Performance Sensitive to Contamination

Any contamination inside the chamber lowers thermal performance. This requires strict manufacturing control.

Applications of Vapor Chambers in Industry

Server and Data Center Cooling

Servers run dense processors and accelerators. The vapor chamber spreads heat across cold plates or heatsinks. It stabilizes hotspot behavior and keeps processors within safe limits during peak loads.

Telecommunication Equipment

5G base stations and network switches operate in tight spaces with high heat output. The vapor chamber keeps the thermal load stable even when ambient temperatures rise.

High-Power LEDs

LED modules need heat spreaders with low thermal resistance. The vapor chamber prevents lumen degradation and color shift caused by heat.

Automotive Electronics

Electric vehicles rely on power modules, battery controllers, and sensors that produce concentrated heat. The vapor chamber supports thin structures and high reliability under vibration.

Industrial Robotics

Robotic arms and control units generate localized heat. The vapor chamber spreads heat to larger cooling surfaces for consistent performance.

Consumer Electronics

Laptops, gaming devices, and VR modules use vapor chambers to maintain surface comfort and performance stability.

Design Considerations for Engineers

1. Thickness Selection

Vapor chambers vary from ultra-thin (0.2–0.3 mm) to thick slabs. Thin designs suit compact spaces but offer less structural strength. Thicker chambers handle higher pressure and support more mounting force.

2. Heat Input Area

Engineers must check the relationship between heat source size and vapor chamber capacity. A small heat source with high power requires a wick with strong capillary pressure.

3. Orientation Effects

Although vapor chambers work in any direction, wick strength still matters. Vertical orientations require higher capillary pressure for stability.

4. Surface Flatness

Flatness affects thermal interface material performance. Some applications require high flatness for optical or precision electronics.

5. Operating Temperature

Water-based vapor chambers perform best in standard electronics. If ambient conditions exceed normal limits, a different working fluid may be necessary.

6. Mounting Pressure

The vapor chamber must withstand mechanical pressure from clips, screws, or heatsinks. Proper internal supports prevent deformation.

Common Issues and Their Solutions

1. Hotspot Persistence

If hotspots remain, the wick near the heat input zone may not match the load. Increasing wick thickness can improve capillary behavior. Adding internal supports near the heat source also stabilizes the structure.

2. Deformation After Mounting

Deformation happens when the internal supports are too sparse. A revised internal structure or thicker copper sheet solves the issue.

3. Temperature Rise Over Time

A rise over time suggests trapped non-condensable gas or fluid imbalance. Manufacturers fix this by adjusting vacuum level and fluid volume.

4. Noise or Vibration Sensation

A proper vapor chamber produces no noise. If there is vibration, the issue may be related to internal dry areas or insufficient wick bonding. Replacement is the only solution because internal repair is not possible.

5. Leakage

Leakage often comes from weld defects at the fill port. High-quality manufacturers use laser welding to prevent this.

Improving Vapor Chamber Performance

Use High-Density Sintered Wick

A sintered wick provides stronger capillary pressure and stable fluid return. It performs well under high power loads.

Optimize Support Columns

Support columns prevent deformation and improve heat spreading uniformity across the top surface.

Match Working Fluid to Load Range

Water is common. Other fluids serve cold or extreme conditions. The fluid must match operating temperature to avoid reduced efficiency.

Combine With Fins or Cold Plates

A vapor chamber spreads heat. Fins or liquid cold plates remove heat to the environment. Combining these systems improves overall cooling.

Best Practices for Selecting a Vapor Chamber Supplier

1. Check Process Capability

A good supplier controls vacuum levels, weld quality, fluid purity, and wick bonding. These factors decide long-term stability.

2. Request Thermal Simulation Reports

Professional manufacturers support simulations that match your load conditions. These reduce design risks and ensure proper sizing.

3. Review Test Standards

Suppliers should perform leak tests, pressure tests, and thermal cycle tests. Process consistency matters more than low cost.

4. Evaluate Flatness and Tolerance Control

Check the supplier’s ability to maintain tight tolerances. Flatness affects performance in high-precision assemblies.

5. Confirm Customization Options

Most B2B applications need custom shapes or mounting features. A capable supplier supports stamped features, threaded holes, or shaped profiles.

Vapor Chamber Market Trends

Higher Power Density

Computing and telecom equipment continue to increase power density. Vapor chambers grow more common as they support these loads.

Miniaturization

Devices get thinner. Engineers now use ultra-thin vapor chambers that maintain structural strength through advanced internal supports.

Integration With Liquid Cooling

Hybrid cooling systems combine vapor chambers and liquid cold plates to handle extreme loads in AI servers and industrial automation.

Growth in Electric Vehicles

EV power electronics increase demand for stable thermal systems. Vapor chambers support control modules and sensors that operate under temperature stress.

Specifications of Tone Cooling Standard Vapor Chambers

Zero Mold Fees   Low MOQ: 50pcs   Fast Lead Time

Popular Applications
 Mobile Devices |  Gaming Laptops |  Server Cooling |  Mini PCs |  5G/IoT Modules |  Industrial Electronics

No.	Product Number	Application	Product Image	Size(mm)	Power(W)
1	DJ_VC_0001	Server/Professional Equipment		155.4×84.02×5.0	666 W
2	DJ_VC_0002	MINI PC/Game Console		98.5x95x5.2	90 W
3	DJ_VC_0003	MINI PC /Game Console		99.5×96.8×4.25	75 W
4	DJ_VC_0004	GPU		92.11x87x7.8	500 W

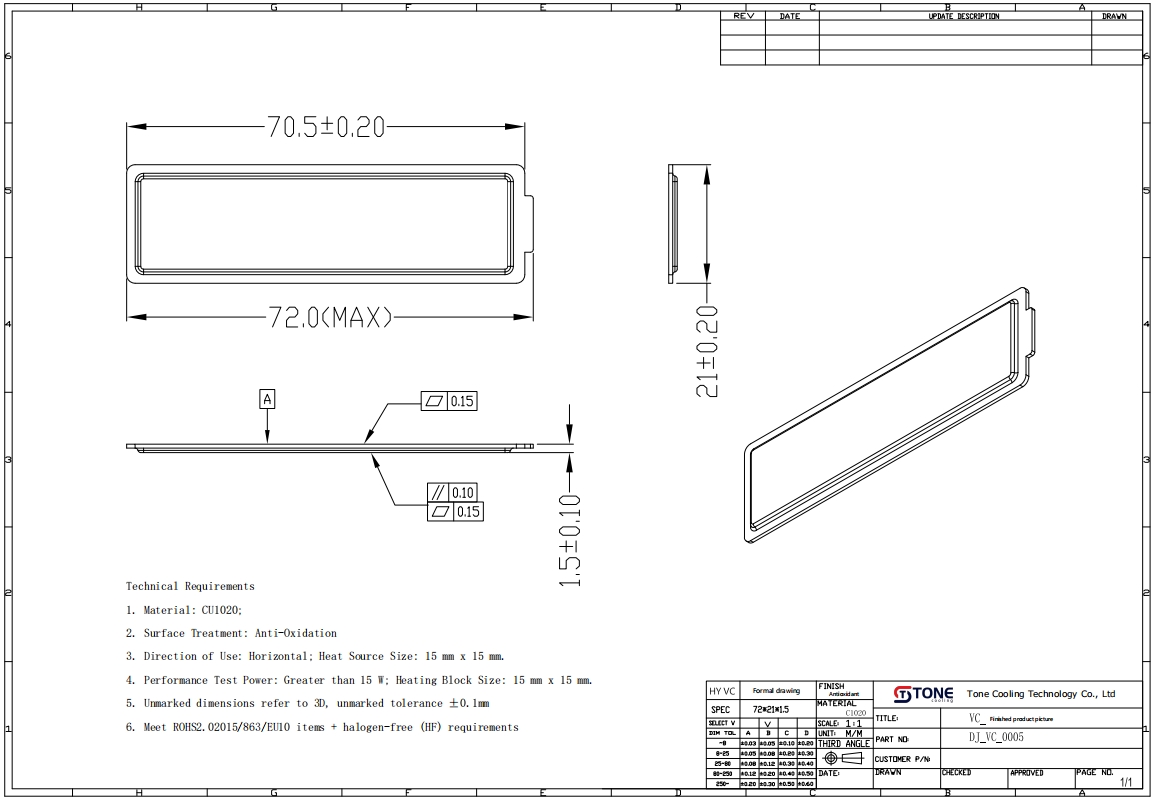

5	DJ_VC_0005	Optical Module/Small Home Appliances/Game Console		72x21x1.5	15～30 W
6	DJ_VC_0006	MINI PC/Server		92x92x3.0	200 W
7	DJ_VC_0007	MINI PC/Server		113x78x4.5	250 W
8	DJ_VC_0008	GPU/Server		132.5*91.4*5.7	400 W
9	DJ_VC_0009	GPU/Server		133.23*90.5*5.6	550 W

Heat Pipe VS Vapor Chamber

Heat pipes and vapor chambers both use the same basic principle of liquid evaporation and condensation to transfer heat efficiently, but they differ significantly in design and application.

A heat pipe is typically a long, cylindrical structure that transfers heat primarily in one direction, making it ideal for moving heat from a single source to a remote heat sink.

In contrast, a vapor chamber is flat and wide, designed to spread heat evenly across a two-dimensional surface, which makes it better suited for cooling larger areas.

FAQ

1. What Does a Vapor Chamber Do?

A vapor chamber is a heat management solution used in electronic devices, designed to efficiently dissipate heat from high-performance devices. It helps prevent overheating, ensuring stable operation and improved device longevity by maintaining optimal temperatures.

2. What Are the Materials in a Vapor Chamber?

The materials used in a vapor chamber are selected for their excellent thermal conductivity. Typically, the outer shell of the chamber is made of copper or aluminum, both of which are great at transferring heat. Inside, there’s a wicking material that helps to move the condensed liquid back to the heat source. The liquid inside the chamber is usually a distilled liquid like water or ethanol, which evaporates and condenses during the cooling process.

3. What Is Wick in a Vapor Chamber?

The wick in a vapor chamber is a porous material that plays a key role in the cooling process. When the vapor inside the chamber condenses into liquid, the wick absorbs the liquid and moves it back to the heat source. The wick ensures that the cycle of heat absorption and dissipation continues smoothly by constantly returning the condensed liquid to the evaporation zone, where it can absorb more heat.

4. What Liquid Is Used in a Vapor Chamber?

The liquid used in a vapor chamber is typically a low-boiling-point fluid like water. It is chosen for their ability to vaporize and condense at relatively low temperatures, making them ideal for cooling electronics. As the device heats up, the liquid inside the chamber evaporates, and the vapor spreads the heat. When the vapor cools down, it turns back into liquid and travels back to the heat source.

5. What Are the Different Types of Vapor Chambers?

There are two main types of vapor chambers used in electronic cooling:

1. Flat Vapor Chambers: These are thin, flat chambers that spread heat evenly across a large surface area. They are commonly used in laptops, smartphones, and GPUs.
2. 3D Vapor Chambers: These chambers are designed with multiple layers and are more complex. They are often used in high-performance applications like data centers or in 3D processors, where efficient heat management is crucial.

6. How Thick Is a Vapor Chamber?

The thickness of a vapor chamber can vary depending on its application. Typically, vapor chambers are quite thin, ranging from 0.5mm to 2mm. Thin chambers are ideal for compact devices like smartphones and laptops, where space is limited but efficient cooling is still needed. In contrast, thicker vapor chambers are used in larger devices, such as gaming laptops or high-performance GPUs, where more heat needs to be dissipated.

7. What is the internal structure of a vapor chamber?
