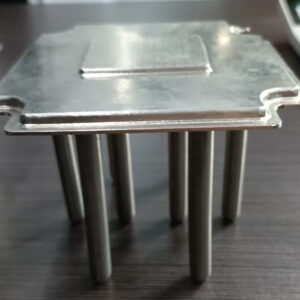

3D Vapor Chamber (3DVC) – 3 Tubes

3D Vapor Chamber (3DVC) is a three-dimensional structure that combines the advantages of a vapor chamber and a heat pipe, capable of transferring heat to any corner. The internal cavities of the heat pipe and the heat plate are interconnected, along with the capillary wick, expanding the steam space and facilitating the rapid return of liquid to the evaporation end. This design enables heat conduction in three dimensions. In comparison to heat pipes and flat vapor chambers, 3D Vapor Chamber (3DVC) offers higher power and lower thermal resistance.

Products Categories

Special-shaped Temperature Balancing Plates

Solar Type 3D Vapor Chamber

TC-LGA 2066/2011 Square

Tungsten Copper Alloy

Friction Stir Welded (FSW) liquid cold plate

Vacuum Brazed Liquid Cold Plate

Vapor Chamber Description

High Thermal Conductivity: The Vapor Chamber uses phase change through liquid evaporation and condensation to rapidly and evenly spread heat, offering excellent thermal conductivity.
Uniform Heat Distribution: The design allows heat to quickly diffuse across the entire surface, reducing hotspots and ensuring stable device operation.
Thin Profile: The compact structure of the Vapor Chamber, usually with a small thickness, makes it suitable for space-constrained applications.
Noise-Free Operation: With no moving parts, it operates completely silently, ideal for applications requiring a quiet environment, like consumer electronics.
High Reliability: The sealed structure ensures durability and long-term reliability, allowing stable performance in various harsh environments.
Versatile Applications: Vapor Chambers can be combined with other cooling solutions, such as heat sinks and fans, to further enhance cooling performance.

Vapor Chamber Technical/Data Sheet

Substrate size	50-45-4
Heat pipe size	D6L240N3
Power	120W
Heat flux density	37(W/cm2)
Heat source size:	18*18mm
Application industry	Optical Module

3D temperature plates (3DVC) can be customized

Maximum size	400 x 300 mm
Tube length	30-300 mm
Tube structur	bendable and flattened
Maximum power	1500W

3DVC Heat Sink

POWER(W)	Tc (°C)	Ta (°C)	AT (°C)	R (C/W)
115	39.5	25.2	14.3	0.124
165	45.3	25.1	20.2	0.122
215	51.1	25.4	25.7	0.12
265	57	25.6	31 .4	0.118
315	62.5	25.4	37.1	0.118
365	68	25.6	42.4	0.116

HP Heat Sink

POWER(W)	Tc (°C)	Ta (°C)	AT (°C)	R (C/W)
115	46	25	21	0.183
165	54.3	24.9	29.4	0.178
215	62.8	25.1	37.7	0.175
265	69.4	25.1	44.3	0.167
310	81.1	25.1	56	0.181

Copper Tube Diameter	Min. A(mm)	Min. B(mm)	Min. C(mm)	Min. D (mm)	Min. E(mm)	Min. F(mm)	Min.G(mm)
6	13	13	34	16	3.2	6	3
8	14	14	36	18	3.2	8	3
10	15	15	38	20	3.2	8	3
12	16	16	40	22	3.2	10	3

Vapor Chamber Applications

Electronics and Computing Applications: Used in high-performance computing systems, graphics cards, and other electronic devices to manage heat and prevent overheating.
Telecommunications Applications: Applied in telecom equipment and infrastructure to ensure reliable operation by efficiently dissipating heat.
Automotive Industry Applications: Integrated into electric and hybrid vehicles to cool power electronics, batteries, and other high-heat components.
Aerospace Applications: Employed in spacecraft and satellite systems for thermal management of sensitive electronics and components in extreme space environments.

3D Vapor Chamber (3DVC) - 3 Tubes Detail Display

ToneCooling vapor chamber thermal management high heat flux

Compact and Lightweight Solar Type 3D Vapor Chamber for Portable Solutions

Advanced Solar Type 3D Vapor Chamber for High-Power Solar Panels
