What CPU sockets does the Hi-Perf 2U TC-LGA4189 CPU Cooler, 270W Copper Base support?

ToneCooling Hi-Perf 2U TC-LGA4189 CPU Cooler, 270W Copper Base supports Intel LGA4189, LGA4677, LGA7529 and AMD SP3, SP5 platforms. Custom mounting hardware included.

What is the MOQ for Hi-Perf 2U TC-LGA4189 CPU Cooler, 270W Copper Base?

Prototype MOQ 5 pieces, 7-15 day delivery. Production MOQ varies by design. ISO 9001 quality.

ToneCooling 2U-LGA4189-CPU-Cooler server rack thermal management

ToneCooling Hi-Perf-2U-LGA4189-CPU-Cooler server rack thermal management

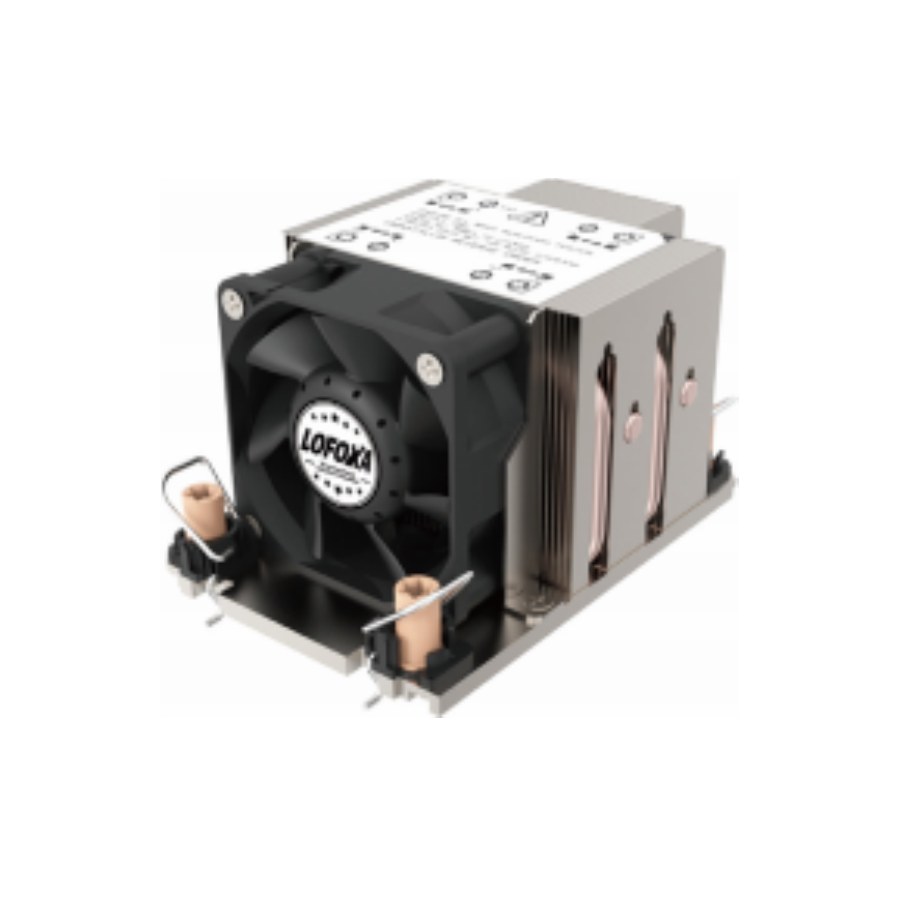

Hi-Perf 2U TC-LGA4189 CPU Cooler, 270W Copper Base

This active TC-LGA4189 CPU cooler is designed for reliable cooling of Intel Xeon processors on rectangular motherboards within 2U server environments. It combines a copper base with aluminum fins, heat pipes, and a high-speed PWM fan to ensure efficient thermal management.

Get A Free Quote

Products Categories

Heat Sink

Tubed Cold Plates

CPU GPU Cold Plate

Vapor Chamber

Special-shaped Temperature Balancing Plates

Solar Type 3D Vapor Chamber

Temperature plate VC

Coolserver

TC-BGA 2518

TC-LGA 7529

TC-LGA 9324

TC-LGA 4189

TC-LGA 4677/4710

TC-LGA 1700/1851

LGA 3647 Narrow

TC-LGA 3647 Square

TC-LGA 2011 Narrow

TC-LGA 2066/2011 Square

TC-LGA 115X/1200

AMD SP7 Series

AMD SP6 Series

AMD SP5 Series

AMD SP3 Series

AMD AM5 Series

AMD AM4 Series

Tungsten Copper Alloy

Friction Stir Welded (FSW) liquid cold plate

Vacuum Brazed Liquid Cold Plate

AIO COOLER RADIATOR

CPU Cold Plate

GPU Cold Plate

IGBT cold plate

MOS Cold Plate

Battery Cold Plate

Product Introduction: Hi-Perf 2U TC-LGA4189 CPU Cooler (270W Copper Base)

Key Features:
✅ Rapid Heat Transfer：6mm full-copper base + composite heat pipe design, 15% faster thermal equilibrium;
✅ Space-Optimized：2U height (≤78mm) with airflow-optimized design, compatible with mainstream server racks;
✅ High-Pressure Cooling：8025 PWM turbo fan (6000 RPM) eliminates dead zones, ensures 24/7 stability;
✅ Tool-Free Installation：Pre-applied thermal compound + snap-on mechanism, 50% faster deployment.

Key Features and Specifications

CPU Socket Type: TC-LGA4189, compatible with Intel Xeon processors.
Form Factor: Recommended for 2U Server and up.
Voltage: 12V.
Product Dimensions: The specified dimensions are 113mm * 78mm * 64.5mm. SilverStone’s XE02-4189 has similar dimensions of 78mm (W) x 65mm (H) x 113mm (D).
Power Consumption: Supports CPUs with a TDP up to 270W.
Material Composition: Copper base, aluminum fins, and 4 heat pipes.
Cooling Type: Active, with a PWM-controlled fan.
Fan Speed: PWM 2100-8000RPM (based on similar models).
Noise Level: 54.34dBA (MAX) (estimated, based on similar models). Supermicro SNK-P0078AP4 has a noise level of 57.5 dB(A) at rated speed.
Air Volume: 34.74CFM (MAX) (estimated, based on similar models).
Fan Connector: 4pin PWM.
Bearing Type: Double ball.

Product Application Fields

Cloud Computing & Virtualization Clusters
- Ensures thermal stability during intensive VM operations in multi-node servers under prolonged high loads;
- Compatible with AWS/Azure-certified server architectures for hybrid cloud data center deployments.
AI Training & Inference Acceleration
- Provides CPU thermal synergy for NVIDIA A100/H100 GPU servers, minimizing training interruption risks;
- Supports hybrid liquid-cooling integration for large-scale AI compute pools (1,000+ GPU clusters).
5G Edge Computing
- Wide-temperature range design (-20°C to 60°C) ensures stability in harsh environments for base station edge servers;
- Compact 2U height fits micro modular data centers (MMDC).
Financial HFT Systems
- Millisecond-level thermal response prevents CPU throttling during latency-critical trading operations;
- Passes EMC tests for SEC/FCA-certified data center compliance.
Scientific Computing & Simulation
- Sustains 100% workload continuity for weather modeling, genome sequencing, etc., with MTBF >200,000 hours;
- Meets ISO 17025 lab thermal standards.

Last Updated: 2026-04-10 | Author: ToneCooling Thermal Engineering Team

High-Performance Cooler Models Comparison (TC-LGA4189 Platform)

1. For 2U Servers

Supermicro SNK-P0078AP4
- Use Case: 2U servers / 3rd Gen Intel Xeon Scalable
- Design: Active cooling, 4-pin PWM fan
- Key Features: Compact for 2U spaces, strong compatibility
Lori D82 2U
- Cooling Capacity: 240W TDP
- Material: Copper fins + direct-contact copper base
- Fan Performance: 8000 RPM (MAX) / 52.5dBA noise
- Interface: 4-pin PWM
SilverStone XE02-4189
- Cooling Capacity: 270W TDP
- Reliability: Dual ball bearing fan (MTTF 198,000 hours)
- Use Case: Industrial/2U rackmount servers

2. For 3U+ Space Solutions

Dynatron N6
- Use Case: 3U servers
- Cooling Capacity: 270W TDP
- Design: Aluminum stacked fins + direct-contact heat pipes

3. Flexible Size Coverage

Noctua Series
- Models: NH-U14S DX-4189 (165mm height) and 14/12/9cm variants
- Compatibility: Workstations to 4U racks
- Key Features: Silent operation, full-size compatibility

4. Diverse Options

MITXPC
- Offers multiple LGA coolers; verify specifications for compatibility

Key Selection Criteria

Thermal Requirements
- Match cooler TDP to CPU power (e.g., 270W cooler for 220W CPU with 20% overhead).
Space Constraints
- 2U/3U chassis height limits (e.g., 2U typically ≤80mm cooler height).
Noise vs. Longevity
- High-RPM fans (e.g., Lori D82) for performance-first setups; low-noise solutions (e.g., Noctua) for office environments.
- Prioritize dual ball bearing fans (e.g., SilverStone) for reliability.
Hardware Compatibility
- Confirm cooler base pressure and socket alignment to avoid conflicts.
