LGA4189-2B07 1U Server CPU Heatsink | Intel LGA4189, 230 W

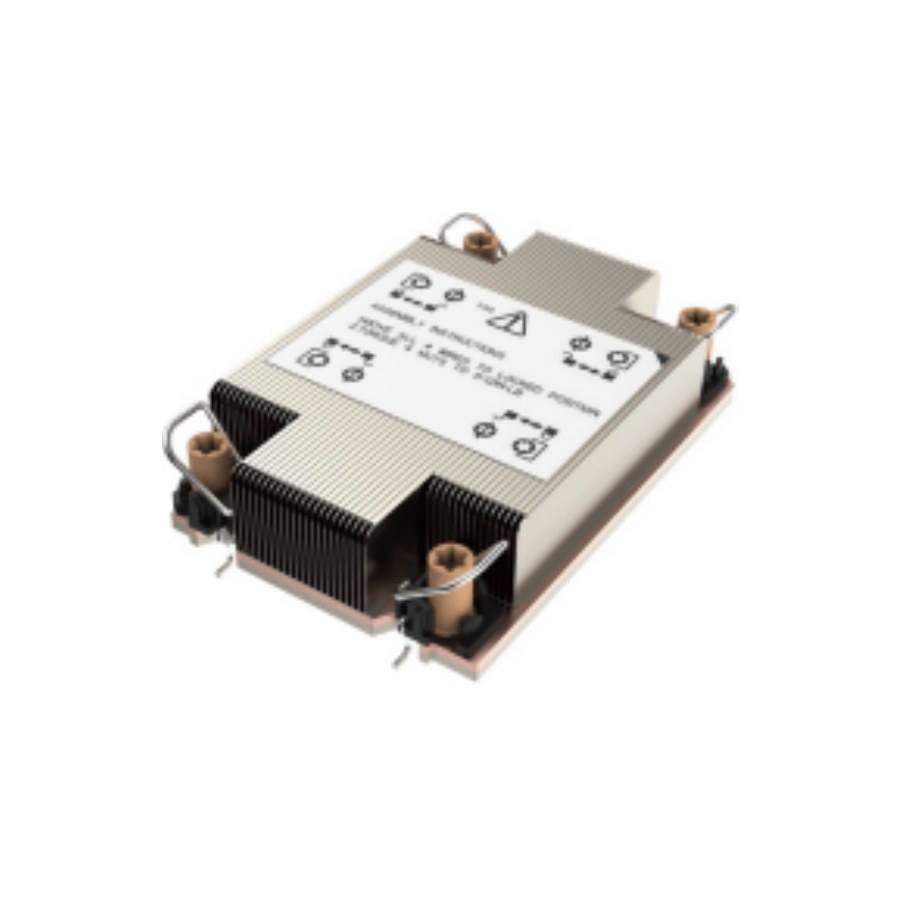

LGA4189-2B07 is a 1U passive CPU heatsink for Intel LGA4189 processors, rated for a 230 W thermal load. Vapor-chamber construction — vapor chamber base, aluminium fins — 113 × 78 × 25 mm overall.

230 W rated — 3rd Gen Intel Xeon Scalable (Ice Lake-SP / Cooper Lake)
113 × 78 × 25 mm — 25 mm profile for 1U chassis
Vapor chamber base, aluminium fins
Passive heatsink — for chassis-ducted airflow; no fan power required
