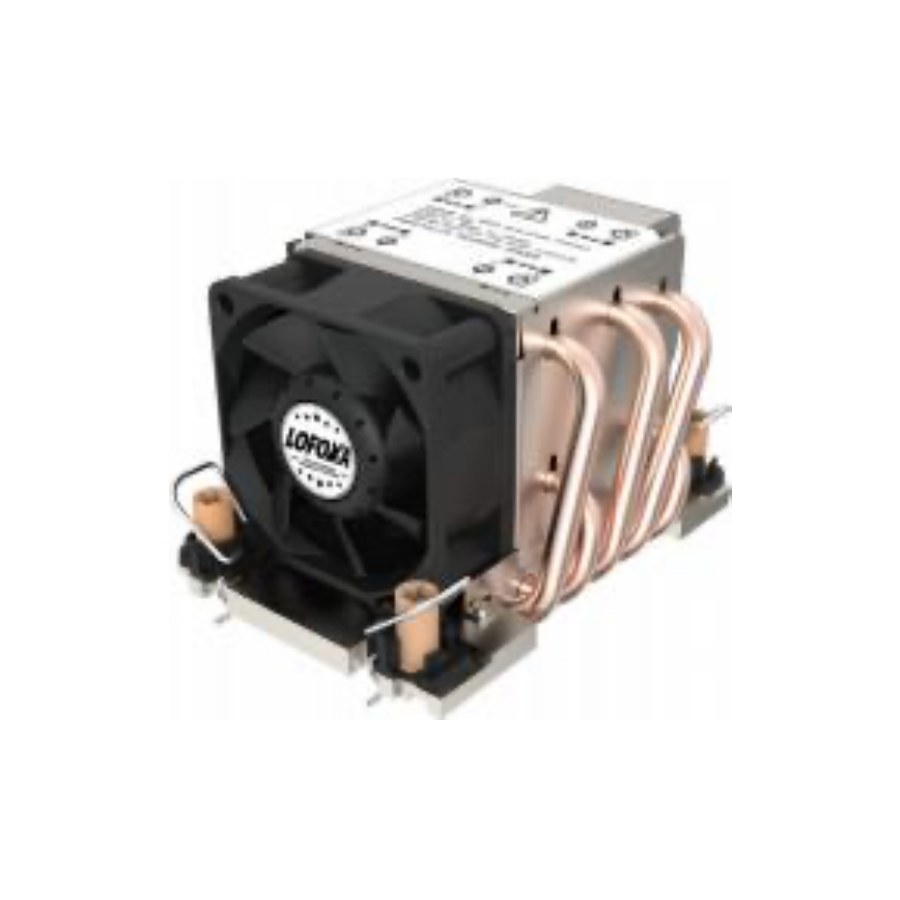

LGA4189-2Z03 2U Server CPU Air Cooler | Intel LGA4189, 300 W

LGA4189-2Z03 is a 2U CPU air cooler for Intel LGA4189 processors, rated for a 300 W thermal load. Heat-pipe construction — copper base, aluminium fins, heat pipes — 113 × 80 × 66.3 mm overall, 5 heat pipes, PWM fan (PWM 2600-8000RPM).

300 W rated — 3rd Gen Intel Xeon Scalable (Ice Lake-SP / Cooper Lake)
113 × 80 × 66.3 mm — 66.3 mm profile for 2U chassis
Copper base, aluminium fins, heat pipes — 5 heat pipes
PWM fan, 2600-8000RPM — double ball bearings, 12 V

Products Categories

Special-shaped Temperature Balancing Plates

Solar Type 3D Vapor Chamber

TC-LGA 2066/2011 Square

Tungsten Copper Alloy

Friction Stir Welded (FSW) liquid cold plate

Vacuum Brazed Liquid Cold Plate

Engineering overview

Thermal: rated 300 W in a 2U chassis with front-to-back airflow. Fin thickness —, fin spacing —; the fin stack is sized for the static pressure of standard server fan walls.
Heat path: Copper base, aluminium fins, heat pipes.
Fan: PWM 2600-8000RPM, 4pin PWM, Double Ball Bearings, 12 V — speed follows the board fan curve.
Mechanical: 113 × 80 × 66.3 mm; retention hardware for Intel LGA4189 included.
Customisation: fin height, fan selection, surface finish and pre-applied TIM per project; drawings and 3D models on request.

LGA4189-2Z03 Specifications

Parameter	Value
Model	LGA4189-2Z03
Product type	2U server CPU air cooler
Socket / platform	Intel LGA4189 — 3rd Gen Intel Xeon Scalable (Ice Lake-SP / Cooper Lake)
Rated thermal load (TDP)	300 W
Overall size (L × W × H)	113 × 80 × 66.3 mm
Base / fin material	Copper base, aluminium fins, heat pipes
Heat pipes	5 PCS
Fan speed	PWM 2600-8000RPM
Fan connector	4pin PWM
Rated voltage	12 V
Bearing	Double Ball Bearings
Compliance	RoHS
Note	Final performance depends on chassis airflow, inlet air temperature, fan curve, TIM and mounting pressure; validate against the CPU thermal limit.

Typical applications

2U rack servers and hyper-converged nodes
GPU and storage servers
Server OEM and ODM programmes

Ordering & RFQ

How to order: quote model LGA4189-2Z03 with quantity and target chassis. Samples 1–5 pcs; production quantities after drawing approval.

RFQ checklist: CPU model and TDP, chassis height and airflow direction, available fan headers and power budget, inlet air temperature, expected quantity. Send a STEP/PDF of your chassis if fin orientation or height matters.

FAQ

Does the TDP rating guarantee CPU temperature? No — the rating is the reference load; final CPU temperature depends on chassis airflow, inlet temperature and fan curve. We validate against your system data on request.

Can the mounting be adapted? Yes — retention hardware is platform-specific; alternative brackets and custom pitches are handled per drawing.

What is included? Heatsink/cooler, mounting hardware and thermal paste (or pre-applied TIM on request).
