Unveiling the Core Technologies of Liquid Cold Plates: A Comprehensive Guide to 6 Mainstream Structures, Processes, and Selection Criteria

What Is Unveiling Core Technologies Liquid Cold?

At first glance many liquid cold plates appear similar: a flat metal plate, inlet and outlet ports, and a sealed internal channel network. In reality the internal channel geometry and the manufacturing method determine thermal resistance, hydraulic losses, reliability, price and manufacturability. Choosing a cold plate is therefore not simply choosing a part; you are choosing an internal architecture and production technology that will define system behavior for years.

This article breaks down the six mainstream cold plate structures used in industry today, examines how each is made, compares costs and timelines, and maps the right structure to common application scenarios: data center servers, GPUs, power electronics, automotive battery thermal modules and aerospace systems.

Overview — The Six Main Liquid Cold Plate Structures — Unveiling the core technologies

Below is a one-line summary of each structure:

• Stamped + brazed cold plate: high-volume, low-cost, formed channel profile and vacuum brazed seal.
• Machined cold plate: CNC-milled channels in monolithic block for design freedom and high performance.
• Embedded (round) tube cold plate: bent tube embedded in a base plate and fixed with potting or mechanical retention.
• Extruded flat-tube (profile) cold plate: extruded hollow profiles (flat tubes) joined to covers, ideal for long/linear shapes.
• Comb-fin (shovel/knife) + brazed cold plate: high-density fin arrays produced by stamping or skiving and then brazed to a base and cover.
• Die-cast + friction stir weld (FSW) cold plate: complex cast channels with solid-state weld sealing for high-strength integrated parts.

1. Stamped + Brazed Cold Plate — Unveiling the core technologies

Introduction and working principle

Stamped + brazed cold plates are made by stamping channel features into thin metal sheets (usually aluminum), stacking a cover plate, and then sealing the assembly using vacuum brazing. The stamping creates raised ribs or channel walls which become the flow path when stacked and sealed. The result is a thin, lightweight cold plate with integrated channels suitable for high-volume production.

Manufacturing process (typical steps)

1. Design and build stamping dies for upper and lower plates.
2. High-speed stamping of plates to form channel geometry.
3. Degrease and clean stamped parts to remove oils and contaminants.
4. Apply brazing foil or paste at interfaces where metallurgical bonding is required.
5. Stack and fixture components in precise alignment.
6. Vacuum furnace brazing at controlled temperature profile to melt filler and create metallurgical bond.
7. Post-braze leak test (pressure/leak detection) and non-destructive inspection (X-ray if required).
8. Machining of ports, surface flatness finishing and surface treatment.

Lead time and cost

Stamping tooling requires upfront investment and lead time (4–12 weeks depending on complexity). Once tools are amortized, per-unit cost is low and cycle times are short — ideal for thousands to millions of parts. Typical per-plate costs are low to moderate depending on size, material and brazing complexity.

Materials

Most commonly aluminum alloys (e.g., 3000/5000/6000 series) for low weight and ease of stamping; copper stamping is possible but less common due to tooling wear and ductility differences. Brazing filler alloys are selected to match base metals (e.g., Al-Si braze for aluminum).

Pros & cons summary

• Pros: low unit cost at high volume, thin profile, good for moderate heat flux
• Cons: limited channel geometry freedom, tooling cost and lead time, lower peak performance vs machined or comb-fin

2. Machined Cold Plate (CNC Milled)

Introduction and working principle

Machined cold plates are created from a monolithic block of metal — typically copper or aluminum — where channels are milled directly into the base. A cover plate is then joined (brazed, welded or diffusion bonded) to create sealed passages. This approach provides the greatest geometric freedom and is the default for prototypes and low-to-medium volume specialty parts.

Manufacturing process

1. Select a suitable block (copper or aluminum).
2. CNC milling of complex channels, manifolds and mounting features.
3. Deburr, clean and apply surface treatments as needed.
4. Seal with cover plate via vacuum brazing, laser welding or FSW depending on materials.
5. Machining of ports, threading and final machining operations.
6. Pressure testing and thermal validation.

Lead time and cost

Lead time is governed by CNC programming and cycle times. Prototype turnaround is fast (days to weeks), but per-unit cost is higher due to machining hours, material waste (especially for copper) and longer finishing steps. For low-to-medium volumes and high-performance needs, machined plates are preferred.

Materials

High-conductivity copper (electrolytic copper or C11000) is common for maximum thermal performance. Aluminum is used when weight and cost matter. For specialized environments, stainless steel may be used with tradeoffs in thermal performance.

Pros & cons summary

• Pros: full geometric freedom, excellent thermal performance, good for bespoke high-flux designs
• Cons: higher cost per part, material waste, longer machining times for complex microchannel features

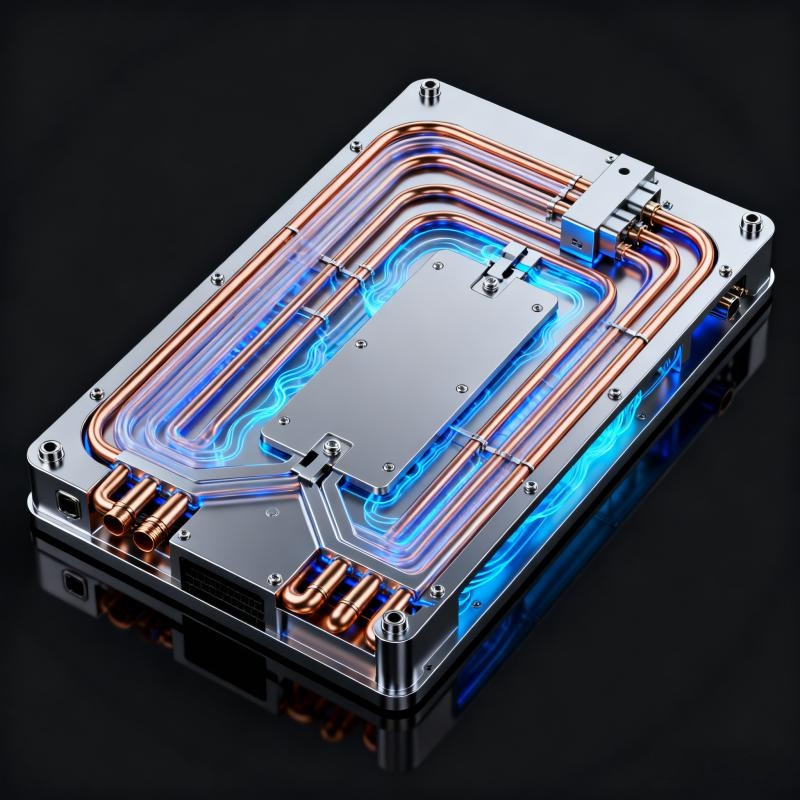

3. Embedded (Round) Tube Cold Plate

Introduction and working principle

Embedded tube designs use round copper or aluminum tubing shaped into serpentine or parallel runs, then placed into machined or formed grooves in a base plate. The tubes are mechanically retained and often potted with conductive epoxy or soldered in place. Heat transfers from the base into the pipe wall and then into the coolant.

Manufacturing process

1. Bend and shape tubes to the required geometry.
2. Machine or stamp grooves into the base plate.
3. Place tubing into grooves and secure with potting compound, adhesive, or mechanical clamps.
4. Finish surface by grinding or machining to achieve planarity if needed.
5. Port machining and leak testing.

Lead time and cost

Very low tooling needs and fast cycle time make embedded tube cold plates an economical option for small runs and simple cooling tasks. Material and labor cost are low. However thermal resistance is higher because round tubes have less wetted area per unit planform and heat conduction must go through additional base thickness.

Materials

Copper tubing is common (good thermal conductivity and ease of brazing). Aluminum tube options exist for cost/weight tradeoffs.

Pros & cons summary

• Pros: lowest cost, simple assembly, quick to produce
• Cons: higher thermal resistance, less uniform cooling, potential long-term adhesion/aging issues

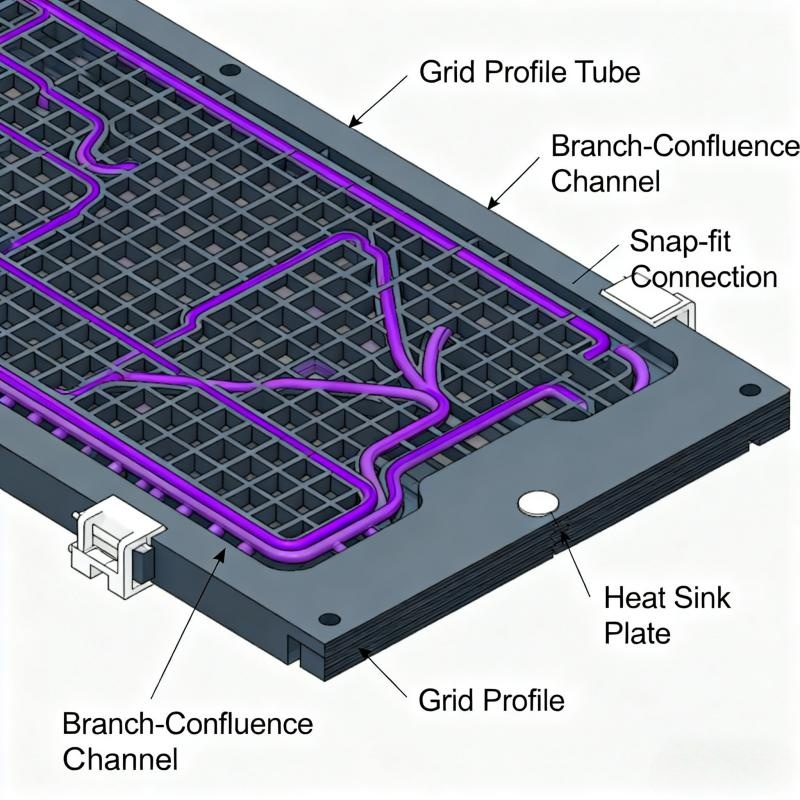

4. Extruded Flat-Tube (Profile) Cold Plate

Introduction and working principle

Extruded flat-tube cold plates rely on hollow extruded profiles (flat tubes) with internal flow cavities. These profiles are cut to length and joined to cover plates by brazing, soldering or welding to produce continuous channels. This method is efficient for long, linear cold plate geometries — for instance long server heat spreaders or battery cooling bars.

Manufacturing process

1. Design and produce an extrusion die for the required internal geometry.
2. Extrude hollow profiles in aluminum alloys and cut to length.
3. Assemble with top/bottom plates and join by brazing or welding.
4. Machine ports and perform pressure testing.

Lead time and cost

Extrusion dies require upfront tooling but per-unit cost becomes attractive at scale. Lead time includes die production. For long linear parts, extrusion reduces material waste and speeds production.

Materials

Commonly aluminum alloys optimized for extrusion (e.g., 6061, 6063). Copper extrusion is less common due to process constraints.

Pros & cons summary

• Pros: economical for long parts, low waste, consistent internal geometry
• Cons: lower flexibility for complex internal manifolds, tooling cost for dies

5. Comb-Fin (Shovel/Skived) + Brazed Cold Plate

Introduction and working principle

Comb-fin cold plates use dense fin arrays produced by skiving, stamping or shredding the base metal to create thin fins or “shovel” teeth. These fins create extremely high surface area for coolant to wet and exchange heat. The fin array is mated with cover plates and brazed to create sealed, high-performance microchannel-like structures without exotic micromachining.

Manufacturing process

1. Skive or machine high-density fins into a base plate (fin thickness can be <0.5 mm).
2. Stack or form the fin array with manifolds and seals.
3. Apply braze foil and perform vacuum brazing to metallurgically join fins and covers.
4. Post-braze machining for ports and surface finish.

Lead time and cost

Skiving equipment and brazing add complexity and equipment cost, but the resulting plates deliver very high heat transfer per unit area. Unit cost is higher than stamped plates but can be more cost-effective than advanced micromachining when scaled.

Materials

Aluminum and copper are common. Copper comb-fin plates are used where superior thermal performance is required.

Pros & cons summary

• Pros: very high heat transfer area, excellent for high heat flux spots
• Cons: higher manufacturing complexity, sensitive to brazing quality and fin damage

6. Die-Cast + Friction Stir Weld (FSW) Cold Plate

Introduction and working principle

This modern method uses high-pressure die casting to form complex internal flow passages and external geometry in one operation. Where open cavities remain, friction stir welding (a solid-state, low-defect joining method) or other sealing technologies finish the assembly, producing a strong, integrated structure with high mechanical integrity.

Manufacturing process

1. Design and manufacture high-precision die-casting molds.
2. Die-cast half-structures or full-bodied parts with internal passages using cores/cores removal or soluble cores for complex geometry.
3. Where separate halves exist, use friction stir welding (FSW) or vacuum brazing to join seams and ensure leak-tightness.
4. Surface machining for flatness, port creation and finishing.

Lead time and cost

Tooling investment is high and mold lead time long, but per-part cost at large volumes is attractive for complex shapes. FSW requires specialized equipment but yields strong solid-state joints without filler materials.

Materials

Aluminum alloys optimized for die casting (e.g., A380) are common. For very high thermal performance, hybrid assemblies with copper inserts may be used.

Pros & cons summary

• Pros: allows complex, integrated shapes and structural features; strong joints with FSW; good for high-volume, mechanically demanding applications
• Cons: very high tooling cost and complexity, limited to certain alloys for die casting

Comparative Table — Advantages & Disadvantages of the Six Structures

Application Mapping — Which Structure for Which Scenario?

Choosing the right cold plate depends on a set of requirements: heat flux, uniformity, mechanical load, expected production volume, allowable pump power, weight and regulatory environment. Below is a quick mapping:

• High-volume cloud servers / commodity nodes: Stamped + brazed for cost effectiveness.
• Prototype or low-volume high-performance nodes: Machined plates for design flexibility and top-end thermal performance.
• Embedded or low-cost industrial systems: Embedded round-tube for simplicity.
• Long form-factor thermal bars (batteries, telecom racks): Extruded flat-tube profiles.
• Extreme heat flux GPUs and AI accelerators: Comb-fin + brazed or micro-machined high-density fin arrays.
• Integrated structural & thermal parts in EV/aircraft: Die-cast + FSW for strength and integration.

Trends & The Likely Development Path

The market will remain diverse, but several trends are shaping the future:

1. Hybridization: Combining manufacturing approaches (e.g., die-cast body + machined copper inserts) to balance cost and thermal performance.
2. High-density fin solutions: Comb-fin and micro-structured plates will proliferate where heat flux demands exceed conventional limits.
3. Additive manufacturing: 3D printing for complex bionic flow channels is an emerging disruptive option — particularly for low-to-medium volumes where bespoke internal geometries provide performance advantages.
4. Advanced joining techniques: Vacuum brazing, transient liquid phase bonding and FSW will become more common as they enable reliable, high-performance seals without compromising thermal conduction.
5. Quality & reliability focus: As liquid cooling moves into mission-critical domains, long-term corrosion resistance, leak detection features, and serviceability will be essential selection factors.

Bottom line: For high-end AI/GPU cooling the market will favor comb-fin / machined and MLCP-style microchannel solutions; for mass-market server deployments, stamped + brazed and extruded profiles will dominate due to cost advantages. Die-cast + FSW will grow where mechanical integration and ruggedness matter.

Common Questions (FAQ)

Q1: Which cold plate type gives the best thermal performance?

A: Generally, machined cold plates and comb-fin brazed plates offer the best thermal performance because they enable high surface area and direct coolant contact. Microchannel MLCP designs (not covered in detail here) can surpass both but require more advanced manufacturing and fluid purity.

Q2: Which method is fastest for prototyping?

A: CNC-machined cold plates are typically fastest for prototypes because no tooling is required. Embedded tube designs are also fast for simple geometries.

Q3: Are brazed cold plates reliable long-term?

A: Yes, when brazed under controlled vacuum furnace conditions and followed by proper pressure testing, brazed cold plates provide strong, leak-tight joints and are widely used in data centers and industrial equipment.

Q4: How should I select between aluminum and copper?

A: Copper has superior thermal conductivity and is preferred for the highest thermal performance. Aluminum is lighter, cheaper and easier to process (stamping, extrusion) and is often the right choice where weight and cost matter more than absolute performance.

Practical Selection Checklist

1. Define thermal target (allowed junction temp, heat flux, transient peaks).
2. Estimate production volume — this strongly influences process selection.
3. Set mechanical constraints: weight, mounting, vibration and shock.
4. Decide fluid and purity level — microchannels require ultra-clean fluid.
5. Budget total cost including tooling amortization, testing and warranty provisions.
6. Plan for maintainability: port placement, quick-disconnects and cleaning access.
7. Run CFD and prototype validation for the chosen structure.
