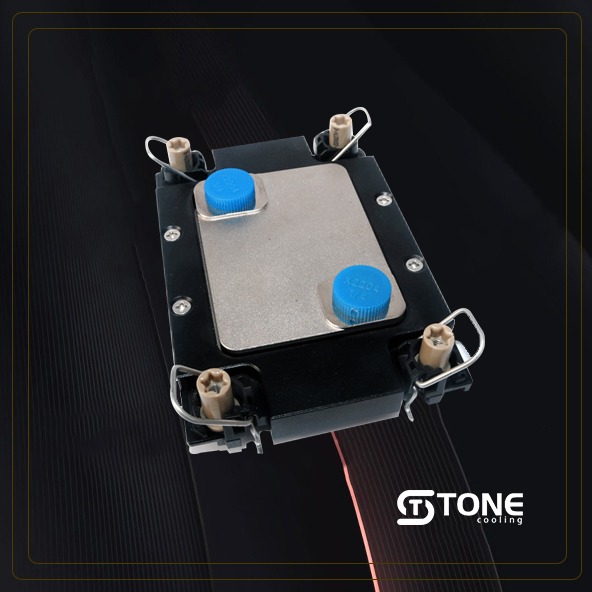

T-HS202302 Intel CPU X3 Liquid Cooling Plate
T-HS202302 Intel CPU X3 Liquid Cooling Plate

T-HS202302 Intel CPU X3 Liquid Cooling Plate

Custom Liquid Cooling Plates for Advanced Electronic Applications

Intel CPU X3 liquid cooling plate

The unique heat dissipation design cleverly directs the water cooling liquid to the CPU, GPU, and artificial intelligence chips.Achieve excellent cooling and heat dissipation performance. Its unique flow path design ensures that the coolant can flow efficiently.Evenly distributed on each heat dissipation surface, thereby significantly improving heat dissipation efficiency. Compared with traditional heat dissipation methods.Heat sinks and fans enhance heat dissipation more effectively.

  • Small batch customization with quick proofing
  • Efficient heat dissipation, solid structure, and optimized thermal management.
  • Performance is improved. After using the liquid cooling plate, the failure rate  caused by CPU overheating is reduced by 50%.
  • Runner processing, brazing packaging anodizing.
  • Can be customized according to customer conditions.
Products Categories
Heat Sink
Tubed Cold Plates
CPU GPU Cold Plate
Vapor Chamber
Special-shaped Temperature Balancing Plates
Solar Type 3D Vapor Chamber
Temperature plate VC
Coolserver
TC-BGA 2518
TC-LGA 7529
TC-LGA 9324
TC-LGA 4189
TC-LGA 4677/4710
TC-LGA 1700/1851
LGA 3647 Narrow
TC-LGA 3647 Square
TC-LGA 2011 Narrow
TC-LGA 2066/2011 Square
TC-LGA 115X/1200
AMD SP7 Series
AMD SP6 Series
AMD SP5 Series
AMD SP3 Series
AMD AM5 Series
AMD AM4 Series
Tungsten Copper Alloy
Friction Stir Welded (FSW) liquid cold plate
Vacuum Brazed Liquid Cold Plate
AIO COOLER RADIATOR
CPU Cold Plate
GPU Cold Plate
IGBT cold plate
MOS Cold Plate
Battery Cold Plate
Other Liquid Cooling Solutions
3D Vapor Chamber​
Sever Optical Module
Battery Swapping Stations or Semiconductor Testing Equipments
Laser Projection
Liquid Cold Plate
Get A Free Quote
Quote Request

CPU GPU Liquid cold plates Description

  1. High Thermal Conductivity: Efficiently transfers heat from the CPU or GPU to the cooling fluid for effective heat dissipation.
  2. Customizable Designs: Available in various sizes and configurations to fit different CPUs and GPUs.
  3. Precision Machining: Designed with high precision to ensure optimal contact and cooling performance.
  4. Durable Materials: Made from materials like copper or aluminum with anti-corrosion coatings for long-lasting use.
  5. Compact and Lightweight: Designed to fit within tight spaces while minimizing additional weight.
  6. Enhanced Cooling Efficiency: Features advanced flow channel designs to maximize heat removal and maintain stable operating temperatures.

CPU GPU Liquid cold plates Technical/Data Sheet

ModelT-HS202302
CategoryIntel CPU
Welding processpure copper TLP welding
heat source Total power270W
Working environment45°C,1LPM,45%PGW
Cold plate surface temperaturebelow 56°C
Flow resistanceBelow 1.5KPa
Resistant to stress1Mpa

CPU GPU Liquid cold plates Applications

  1. Computer Applications: CPU and GPU liquid cold plates are essential in high-performance computing, gaming PCs, data centers, and servers, ensuring efficient cooling for optimal performance and reliability
  2. Data Center Applications: CPU and GPU liquid cold plates are crucial in data centers for managing heat, enhancing cooling efficiency, and maintaining optimal performance and reliability of high-density servers.
  3. Server Applications: CPU and GPU liquid cold plates optimize cooling in servers, improving heat dissipation, maintaining performance, and extending the lifespan of high-performance computing components.
  4. Gaming PC Applications: CPU and GPU liquid cold plates enhance cooling in gaming PCs, boosting performance, reducing overheating, and enabling higher overclocking for smoother gameplay and improved system stability.

Intel CPU X3 Liquid Cooling Plate: Designed for high-efficiency heat dissipation and quiet operation, compatible with multiple Intel processor generations. Optimize gaming, overclocking, and high-performance computing with rapid cooling to prevent overheating. Easy installation and durable design—boost your system’s cooling performance now

Need a Custom Cold Plate for Your Project?

Send us your STEP/PDF file with TDP, coolant type, and flow requirements. Our engineers will deliver a thermal design proposal within 24 hours.

✓ ISO 9001 Certified  |  ✓ MOQ 5 pcs  |  ✓ Prototype in 4–6 weeks  |  ✓ NDA Available

Get Free Quote of T-HS202302 Intel CPU X3 Liquid Cooling Plate
